Engineered to Cut. Built to Remove What Others Can’t.
Dynalloy manufactures a comprehensive range of tungsten carbide inserts designed to maximize penetration rates and milling efficiency. From standard geometries to our patented Piranha technology, our inserts deliver the bite you need for the toughest downhole obstructions.

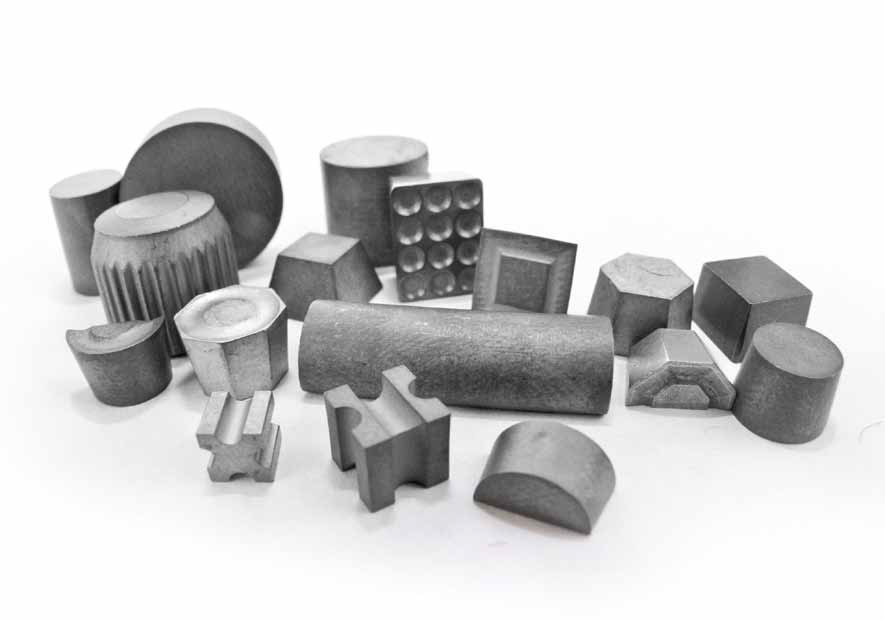

DynaCut tungsten carbide inserts
Why Choose DynaCut Inserts?
Dynalloy’s tungsten carbide inserts are engineered with performance‑focused grades and geometries that excel in milling, reaming, and casing‑exit tools. Their tailored carbide formulations and precision‑aligned cutting structures deliver cleaner engagement and higher penetration in demanding downhole environments where conventional inserts fail.
Why Choose DynaCut Inserts?
Downhole milling is a race against time. Dynalloy inserts are engineered to give you the edge, combining advanced geometries with premium carbide grades to ensure you reach total depth faster and with fewer trips.
Optimized Geometries
We don’t just press powder; we engineer shapes. Our inserts feature specific rake angles, chip breakers, and fluted designs that actively turn material back against itself, creating smaller cuttings that are easier to circulate out of the wellbore.
Premium Grade Formulation
Our inserts are sintered from a proprietary tungsten carbide grade specifically formulated for downhole milling. This composition balances high hardness for cutting efficiency with the toughness required to withstand the shock of impact without shattering.
The Piranha® Advantage
For applications requiring maximum bite, our patented Piranha® inserts feature a unique fluted cube geometry. As the insert wears, it continuously exposes new cutting edges and flutes, maintaining aggressive cutting action throughout the tool’s life.
Product Lines
Our DynaCut® Line of Cutting, Milling and Wear Resistant Inserts are pressed and sintered with specially formulated grades of tungsten carbide powder, each suited for a wide variety of uses in any industry.
Standard Cutting Inserts
Versatile shapes for general milling and reaming.

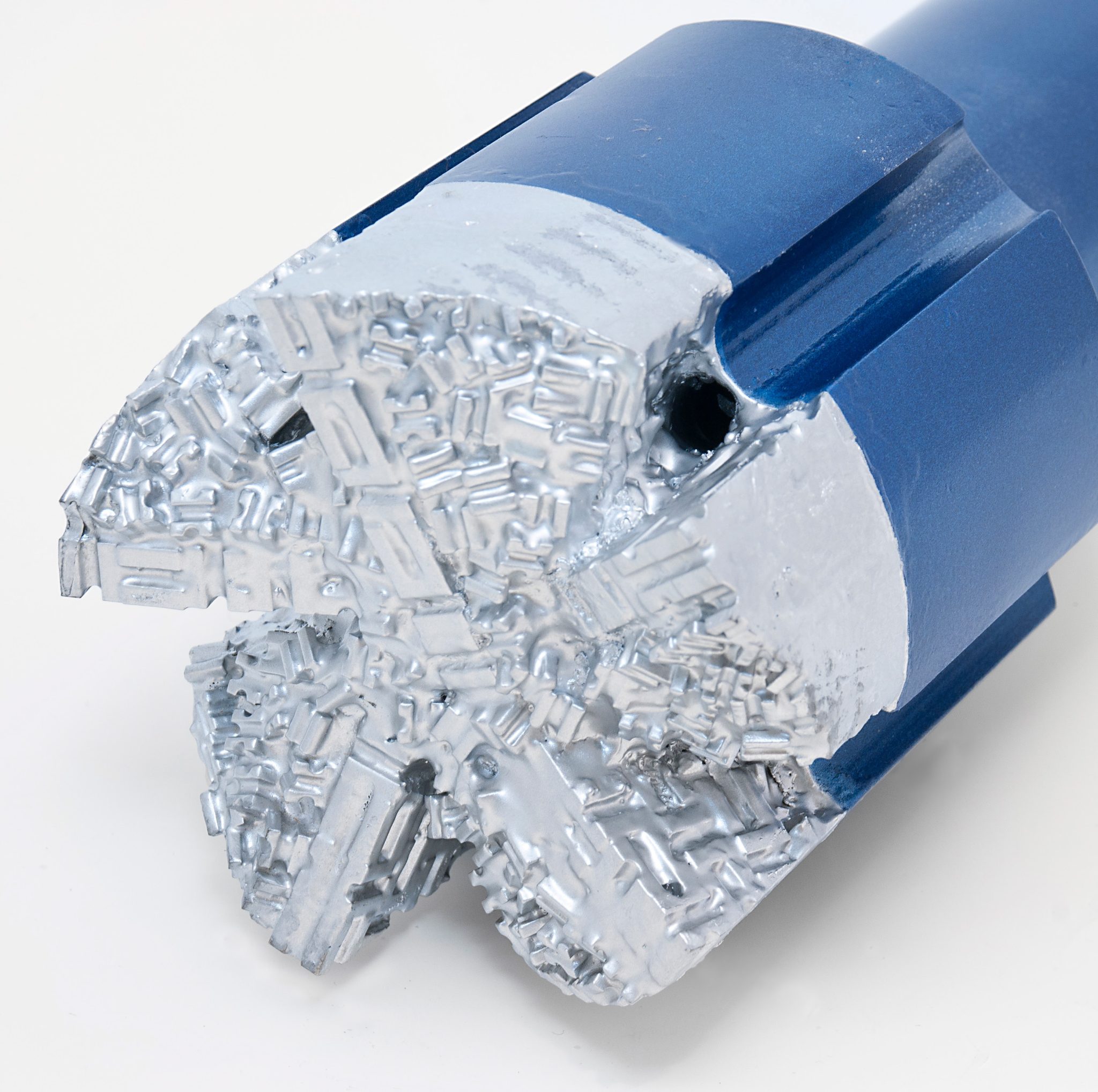

Our standard line covers the essential geometries required for junk mills, stabilizers, and casing exit tools. Available in a wide variety of shapes to match your specific tool design and cutting requirements.
- Shapes: Round, Square, Triangle, Rectangle, and Octagon.
- Features: Available with flat tops or integrated chip breakers to improve cutting evacuation.
- Applications: General junk milling, pilot mills, taper mills and whipstocks.
Coming Soon: Download Standard Cutting Inserts Safety Data Sheet
Piranha Inserts
Patented technology for superior obstruction removal.
The Piranha® is designed for the most demanding milling operations. Its multi-faceted design ensures that a sharp cutting edge is always presented to the work surface, regardless of orientation.
- Self-Sharpening: New cutting facets are exposed as the insert wears.
- Applications: Packer mills, composite bridge plug (CBP) mills, reamers, and thru-tubing tools.
- Fluid Compatibility: Proven performance in mud, saltwater, air, or foam drilling fluids.
Coming Soon: Download Piranha® Inserts Safety Data Sheet

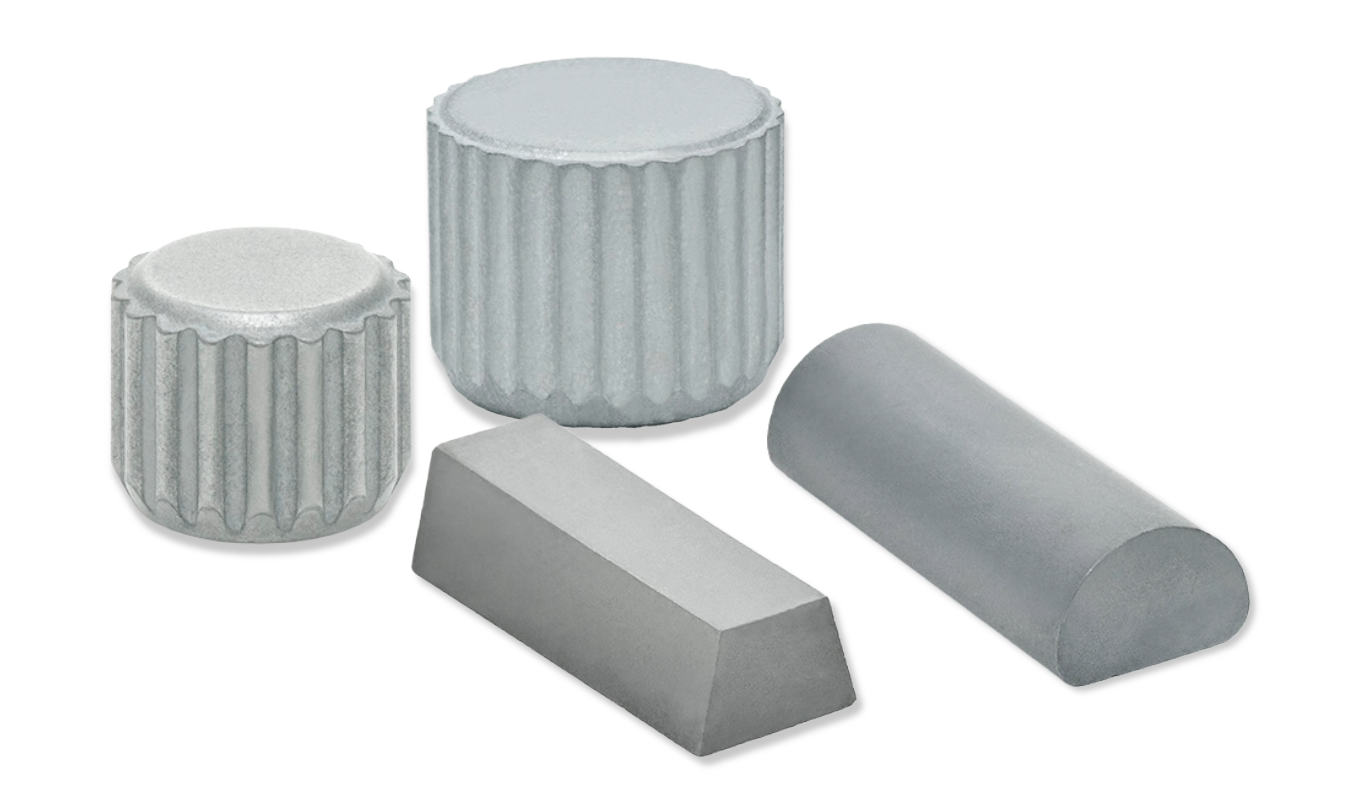

Wear & Gauge Protection
Compact inserts for stabilization and durability.
Beyond cutting, we offer inserts designed specifically for gauge protection and wear resistance on stabilizers and tool bodies.
- Trapezoids & Half-Rounds: Ideal for protecting leading edges and high-wear surfaces.
- Serrated Compacts: Provide aggressive grip and wear protection on stabilizer blades.
- Gauge Tiles: Small, uniform tiles for protecting large wear surface areas, typically as part of a tile and spray-and-fused alloy application to guard insert interfaces
Coming Soon: Download Wear & Gauge Protection Safety Data Sheet
Technical Specifications
Selecting the right DynaCut insert is critical for maximizing cutting efficiency and wear life.
Insert Shapes & Configurations
| Shape Category | Common Profiles | Key Features |
|---|---|---|
| Piranha | Fluted Cube | Self-sharpening, multiple cutting facets, aggressive chip breaking |
| Square | Flat Top, Chip Breaker, Dimpled | Robust corner strength, excellent for general milling |
| Round | Flat Top, Chip Breaker | Strongest cutting edge, ideal for harder formations |
| Polygon | Octagon, Rectangle, Triangle | Varied cutting angles for specific tool geometries |
| Wear | Serrated Compact, Trapezoid | Low profile, high abrasion resistance for gauge protection |
Key Industry Sectors
Contact us to discuss your application.
Fishing & Rental Tools
Junk mills, pilot mills, taper mills.
- Recommended: Square / Round / Piranha
- Benefit: Rapidly destroys obstructions like packers, bridge plugs, and loose junk.
Plug & Abandonment (P&A)
Window mills, section mills.
- Recommended: Octagon / Rectangle / Piranha
- Benefit: Aggressive cutting action for efficient casing penetration and window generation.
Well Intervention & Workover
Motor mills, reamers, thru-tubing tools.
- Recommended: Piranha / Fluted Cube
- Benefit: High cutting efficiency with lower torque requirements for coiled tubing operations.
Drilling Services
Stabilizers, reamers, keyseat wipers.
- Recommended: Serrated Compacts / Wear Buttons
- Benefit: Maintains gauge and protects the tool body from abrasive formation wear.
FAQs
What makes the Piranha insert different from a standard square insert?
The Piranha features a patented fluted geometry that provides multiple cutting edges on every face. Unlike a standard square insert that can become blunt, the Piranha® exposes new sharp edges as it wears, maintaining a high rate of penetration (ROP) throughout the run.
Do you offer inserts with chip breakers?
Yes. Most of our standard shapes (Square, Round, Octagon, etc.) are available with molded chip breakers. These features help break up long metal shavings into smaller chips, making them easier to circulate out of the hole and preventing “bird nesting” around the tool.
Can I use these inserts for air or foam drilling?
Absolutely. Our tungsten carbide grade is formulated to withstand the high heat generated during air or foam drilling, where liquid cooling is limited. The Piranha insert, in particular, is field-proven in these environments.
What is the best insert for milling composite bridge plugs?
For composite plugs, we highly recommend the Piranha or Fluted Cube inserts. Their aggressive cutting geometry shreds the composite material efficiently, while their self-sharpening nature ensures the mill stays aggressive through multiple plugs.
Coming Soon: Download a printable DynaCut Inserts product guide
Ready to Increase Your Rate of Penetration?
Whether you are building junk mills, reamers, or fishing tools, the right insert makes all the difference. Equip your tools with Dynalloy tungsten carbide for matchless milling performance.
